YBY-ATDH50020 200V 300V 500V 5A 15A 20A 10KW Aging, testing, inspection, experimental power supply High-power high-voltage power supply

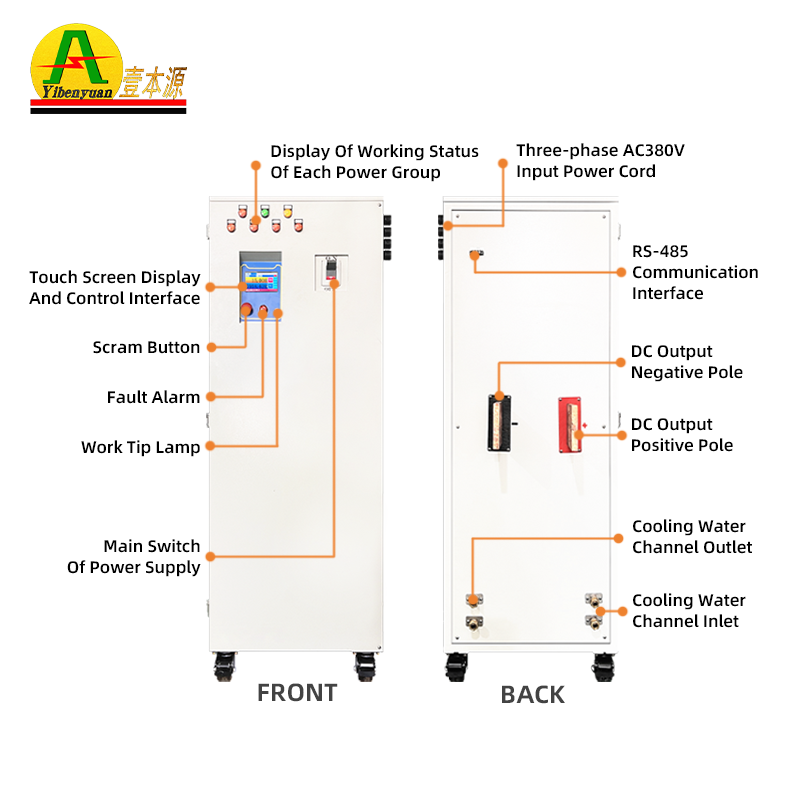

① Model: YBY-ATDH50020
② AC INPUT: Three phase 380VAC±10% 50/60HZ or Customize
③ DC OUTPUT: 0~500VDC, 0~20A
④ Max Power: 10000W
⑤ Size of machine : L680*W450*H520 (MM)
⑥ Net Weight: 63KG, Gross Weight: 81KG
⑦ Application: For testing (or customized for different areas)
⑧ Adjusting method: Potentiometer knob or Touch Panel (Optional)
⑨ Communication: RS485*1 or RS232 *1 (Optional)
⑩ Analog signal control: 0-5V DC /0-10VDC/4-20mA ( Optional)
⑪ Customize 1~500000V DC & 1~200000A( just send inquiry)
We specialize in customizing DC power supply to meet your specific requirements.
With customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 20000A.
Please visit our website and submit any inquiries to explore our capabilities further.
