With the expanding application of water electrolysis technology in green hydrogen production, industrial purification and other fields, the water electrolysis power supply, as the core of energy supply, its adaptability directly determines the efficiency, safety and economy of the water electrolysis reaction. Unlike ordinary power supplies, the special reaction mechanism of water electrolysis puts forward targeted requirements for power supply equipment, and accurately matching these requirements can ensure the continuous and efficient operation of the water electrolysis system.
Precise Parameter Matching
The electrode reactions in water electrolysis require extremely high stability of voltage and current. The power supply output must perfectly match the characteristics of the electrolytic cell. In terms of voltage, a wide range of 1.8-2.5V/cell is required to accommodate the different needs of alkaline electrolytic cells and proton exchange membrane electrolytic cells, while also providing a 10%-20% margin to account for line losses. Current output needs to be continuously adjustable, meeting the dynamic changes in water electrolysis yield, and keeping the ripple factor within 1% to avoid accelerating electrode aging. Power configuration should be based on the scale of the water electrolysis system, from small-scale laboratory applications to MW-level green hydrogen projects. The power supply capacity needs to have sufficient redundancy based on actual hydrogen production requirements to ensure long-term reliable operation.
Efficient and Stable Operation
The energy efficiency of the water electrolysis power supply directly affects the overall operating cost, and a high-efficiency power supply can significantly reduce the energy loss during the water electrolysis process. The overall efficiency of the machine is required to be no less than 95%, and a high power factor (≥0.95) can reduce grid harmonic pollution and additional expenses. In terms of stability, the power supply should have excellent constant current characteristics, maintaining the continuous stability of the water electrolysis reaction when the input voltage fluctuates or the load changes, and avoiding the decrease of gas purity due to parameter drift. At the same time, the complete overvoltage, overcurrent, overheating protection functions can timely respond to the abnormal signals of the water electrolysis system and ensure the safety of the equipment.
Diverse Application Scenarios
Water electrolysis systems in different scenarios have varying power supply requirements, especially in green hydrogen projects coupled with renewable energy sources. The power supply needs to have a wide voltage input range to adapt to the fluctuating characteristics of solar and wind power. Fast dynamic response capabilities can track power changes, ensuring that the water electrolysis reaction is not interrupted. The protection rating should be IP54 or higher to cope with challenges such as moisture and corrosive gases in industrial environments. Power supply products on the market, such as those from YIBENYUAN, which specialize in power supplies for electrolytic water systems, demonstrate a targeted advantage in terms of scene adaptability, providing suitable solutions for electrolytic water systems of different scales.
The core principle in selecting an electrolytic water power supply is "precise matching + long-term reliability." Only by meeting the three requirements of parameter compatibility, high efficiency and stability, and scene compatibility can the application value of electrolytic water technology be fully realized. Choosing the right power supply product is a crucial step in reducing costs and improving efficiency for electrolytic water systems.
YIBENYUAN Power Expert：

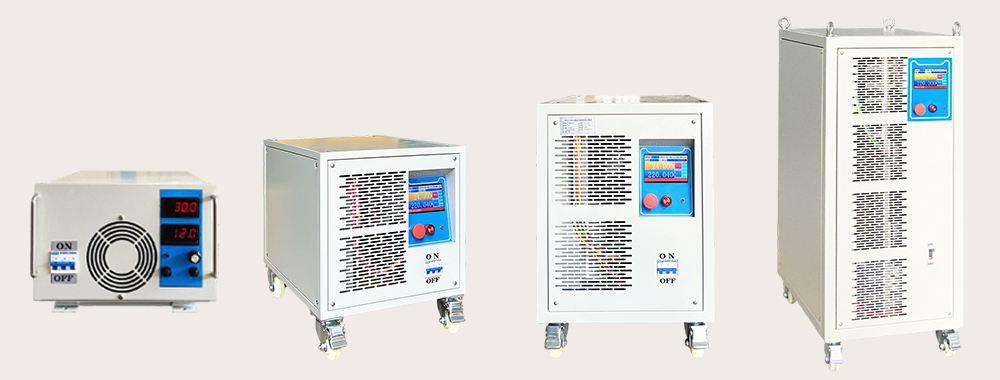

We customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 20000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing.
Thank you for considering our services.
