The pulse electroplating power supply is a special power supply device adapted to precision plating processing in the electroplating field. Relying on the pulse current output characteristic, it can greatly improve the compactness and adhesion of the plating layer, and is suitable for high-precision electroplating needs such as electronic components and precision hardware. The structure and output principle of the pulse electroplating power supply are different from those of ordinary electroplating power supplies. The operation details, parameter regulation and environmental control in its use process directly affect the electroplating effect and equipment service life. Mastering the precautions for using the pulse electroplating power supply is the key to exerting its performance advantages and ensuring precision electroplating processing.
Precise Control of Parameter Regulation
The core advantage of the pulse electroplating power supply lies in the flexible adjustment of pulse parameters, and the precise matching of parameters with electroplating processes is the primary attention when in use. It is necessary to adjust the core parameters such as pulse frequency, duty cycle and peak current of the pulse electroplating power supply according to the electroplating material and the required plating thickness, so as to avoid rough plating and pinholes caused by parameter deviation. At the same time, the output current and voltage of the pulse electroplating power supply should be fine-tuned step by step, and cannot be adjusted drastically in an instant, to prevent the core inverter module of the pulse electroplating power supply from being damaged by current impact, and also avoid local uneven deposition of the plating layer. The pulse electroplating power supply of YIBENYUAN has precise gear control in parameter adjustment, which can better adapt to the parameter fine-tuning needs of different precision electroplating processes.
Real-Time Monitoring of Equipment Operation
During the operation of the pulse electroplating power supply, full-time status monitoring should be done to troubleshoot abnormal problems in a timely manner. After starting up, first observe whether the parameters on the display screen of the pulse electroplating power supply are stable, and whether there are alarm prompts for overload, overheating and phase loss. If an alarm occurs, the machine must be shut down immediately for troubleshooting, and it is not allowed to continue running forcibly. During electroplating, pay attention to the heat dissipation state of the pulse electroplating power supply, check whether the cooling fan or water cooling pipeline is working normally, to prevent the internal components of the pulse electroplating power supply from overheating due to poor heat dissipation, which affects the stability of pulse output. In addition, it is also necessary to monitor the liquid level and conductive state of the electroplating tank to prevent abnormal load of the pulse electroplating power supply caused by too low plating solution level and poor conductivity.
Standardized Control of the Use Environment
The pulse electroplating power supply has higher requirements for the use environment than ordinary electroplating power supplies, so it is necessary to do a good job in the standardized control of the environment to avoid interference from external factors. The pulse electroplating power supply should be installed in a dry, ventilated environment without corrosive gas, far away from the electroplating solution splashing area, to prevent plating solution water vapor and corrosive substances from entering the pulse electroplating power supply, causing short circuit of the circuit board and oxidation of components. The equipment should be placed with enough heat dissipation space from surrounding objects to avoid direct sunlight and high temperature baking. At the same time, the on-site power supply line should be grounded, and the grounding resistance should meet the specification requirements to prevent static electricity and surge voltage from interfering with the precision control circuit of the pulse electroplating power supply.
Regular Implementation of Equipment Maintenance
The precision of the pulse electroplating power supply determines the importance of its maintenance, and regular equipment maintenance must be implemented during use. After the electroplating operation is completed, wipe off the dust and water vapor on the surface of the pulse electroplating power supply in time to keep the equipment shell clean and dry. Regularly check the input and output terminals of the pulse electroplating power supply to ensure that the wiring is firm without oxidation and loosening, so as to avoid poor contact affecting the transmission of pulse signals. Regularly detect the internal heat dissipation components and filter capacitors of the pulse electroplating power supply, and replace the aging vulnerable components to keep the pulse electroplating power supply in a good operating state at all times.
The core of using the pulse electroplating power supply lies in "precision adjustment, monitoring, environmental control and emphasis on maintenance". The detailed control of each link is the basis for exerting its advantages of precision electroplating. Only by strictly following the usage precautions and making the performance of the pulse electroplating power supply highly compatible with the electroplating process, can we create high-quality electroplating layers, and at the same time extend the service life of the pulse electroplating power supply, making it continuously play a supporting role in power supply in precision electroplating processing.
YIBENYUAN Power Expert：

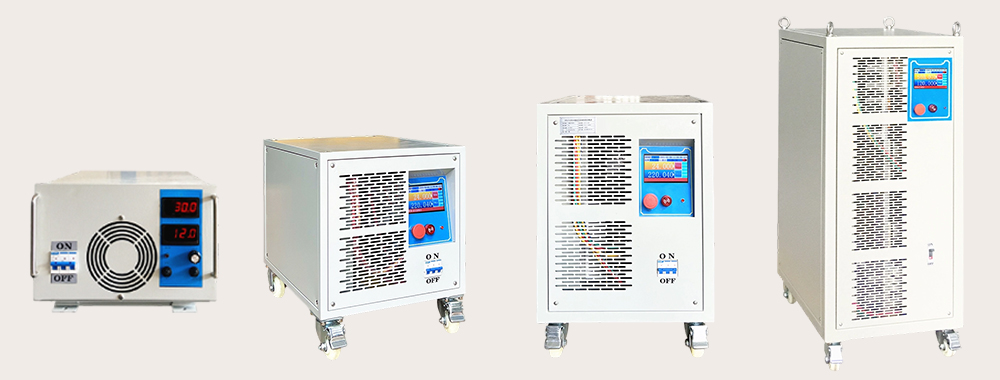

We customized input and output voltage and current, our offerings range from 0V to 2000KV DC and 0A to 20000A. We provide AC-DC solutions for the motor category or electrical appliances testing or Lab testing, electrochemistry, electrolysis, electroplating, and anodizing.
